Subject: Marine Geospatial Ecology Tools (MGET) help
Text archives
| From: | David Huff <> |
|---|---|
| To: | |
| Subject: | [mget-help] Create Lines From Vector Component Rasters |
| Date: | Thu, 25 Aug 2011 16:10:37 -0700 |
|

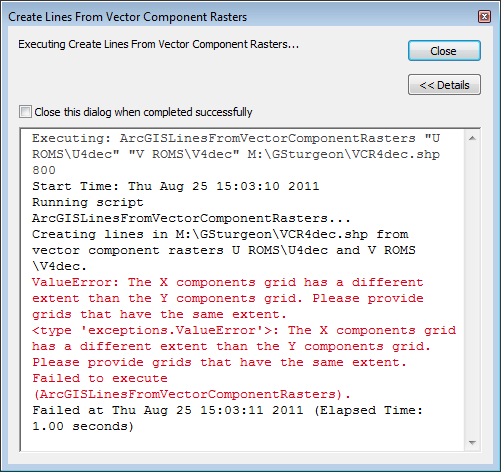

Hello, I am trying to use the "create lines from vector component rasters tool and I am getting the following error message (pasted screenshot below): Executing: ArcGISLinesFromVectorComponentRasters "U ROMS\U4dec" "V ROMS\V4dec" M:\GSturgeon\VCR4dec.shp 800 Start Time: Thu Aug 25 16:06:20 2011 Running script ArcGISLinesFromVectorComponentRasters... Creating lines in M:\GSturgeon\VCR4dec.shp from vector component rasters U ROMS\U4dec and V ROMS\V4dec. ValueError: The X components grid has a different extent than the Y components grid. Please provide grids that have the same extent. <type 'exceptions.ValueError'>: The X components grid has a different extent than the Y components grid. Please provide grids that have the same extent. Failed to execute (ArcGISLinesFromVectorComponentRasters). Failed at Thu Aug 25 16:06:21 2011 (Elapsed Time: 1.00 seconds) I have made sure that the two component grids are the same extent, same cell sizes, etc. In fact they were both made in the exact same way using a process that I put together in model builder. So they should be identical. I'm not sure what to try next. Please advise. Thanks! David David D. Huff Fisheries Ecology Division Southwest Fisheries Science Center 110 Shaffer Road Santa Cruz, CA 95060 phone: 831-420-3927  |
